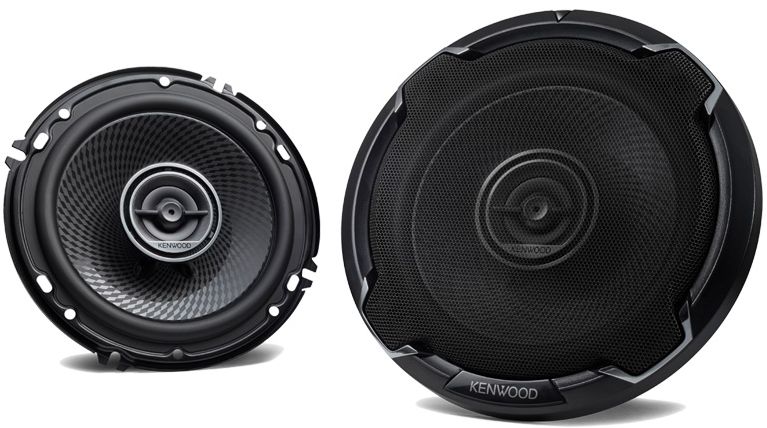

6-1/2" Round 2-way 2 Speaker with a diamond array pattern woofer cone and acoustic sound harmonizer.Read More
Peak Power 320W
Diamond Array Pattern Woofer Cone
Acoustic Sound Harmonizer
Sound Field Enhancer
This technology enhances sound and reduces distortion.
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.
Stress leveling points increase durability and provide a smoother sound response.
Enlarged open area provides more bass and cleaner sound.
General Specs | |
| Impedance | 4 Ohms |
| Depth (cm.) | 4.78 |
| Product Weight (kg) | 1.63 |
| Color | Black |
| Depth (in.) | 1.88 |
| Product Weight (lbs.) | 3.6 |
| Manufacturer Warranty | 1 Year |
| Color Finish Name | Black |
| Car Speaker Size | 6.5 |
| Mounting Hardware Included | Yes |
| Water Resistant | No |
| RMS Power Handling (Watts) | 100 |
| Peak Power Rating (Watts) | 320 |
| Shallow Mount | No |
General | |
| Peak Input Power | 320W |
| Rated Input Power | 100W |
| Impedance | 4Ω |
| Woofer Features | 6-1/2 inch Paper Cone |
| Midrange Features | 1-3/16 inch Paper Cone |
| Sensitivity | 88 dB/ W / m |
| Frequency Response | 75Hz -24KHz |
| Cutout Diameter | 4-7/8 inch |
| Mounting Depth | 1-7/8 inch |
| Gross Weight | 3.6lbs |
| Weight of Magnet(Woofer) | 0.6lbs |
