Product Dimensions 2.19"h x 6.69"w x 7.38"d
JVCKENWOOD USA has a reputation for bringing important new products to the consumer electronics market. The company built the first audio/video amplifier for home theater back in 1981. JVCKENWOOD also created the first anti-theft car cassette deck that could be slid out of the dash; the first with an automatic broadcast sensor system and automatic noise reduction; the first with 24 presets; and the first polypropylene speaker cones. Over the years, JVCKENWOOD engineers have invented dozens of new technologies later copied by others.Read More
Max Power 600W
Size (inch) (W) 6-11/16" x (H) 2-3/16" x (D) 7-3/8"
Variable High & Low Pass Filter
Bass Boost

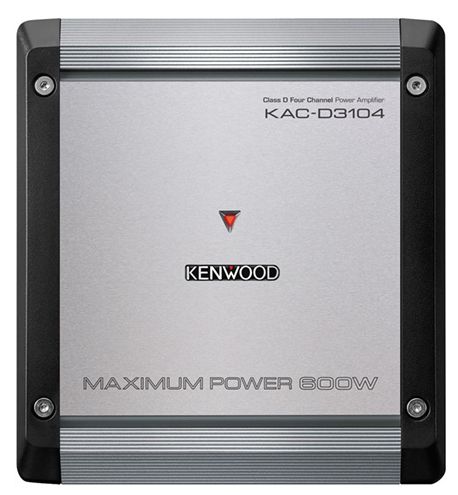

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.
Supporting Hi-Res Audio, KAC-D3104 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.
This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.
The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.
General Specs | |
| Color | Black |
| Depth (in.) | 7.38 |
| Width (in.) | 6.69 |
| Height (in.) | 2.19 |
| Amplifier Class | Class D |
| Amplifier Output (Watts) | 600 |
| Bluetooth Capable | No |
| Color Finish Name | Black |
| Amplifier Channels | 4 |
| Impedance | 2 - 4 Ohms |
| RMS Power Handling (Watts) | 150 |
| Water Resistant | No |
| Shallow Mount | No |
| Digital Input | No |
| Speaker Level Input | Yes |
| Number Of Outputs | 4 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 2 |
| Height (cm.) | 5.56 |
| Depth (cm.) | 18.75 |
| Product Weight (kg) | 1.32 |
| Product Weight (lbs.) | 2.9 |
| Width (cm) | 16.99 |
