Product Dimensions 2.19"h x 9"w x 7.38"d
JVCKENWOOD Corporation is a leading developer and manufacturer of consumer electronics and communications equipment. Founded in the United States in 1961, JVCKENWOOD USA is the largest sales subsidiary of JVCKENWOOD Corporation of Japan and is recognized by consumers and industry professionals for providing products known for quality, performance, and value.Read More
Max Power 1600W
Size (inch) (W) 9" x (H) 2-3/16" x (D) 7-3/8"
Variable High & Low Pass Filter
Bass Boost

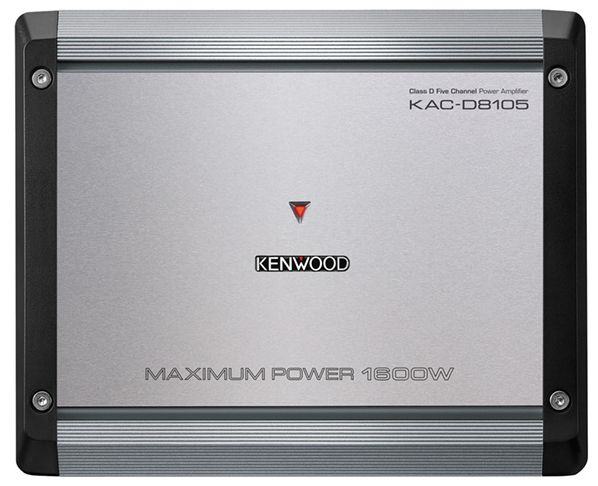

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.
Supporting Hi-Res Audio, KAC-D8015 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.
This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.
General Specs | |
| Color | Black |
| Depth (in.) | 7.38 |
| Width (in.) | 9 |
| Height (in.) | 2.19 |
| Amplifier Class | Class D |
| Amplifier Output (Watts) | 1600 |
| Bluetooth Capable | No |
| Color Finish Name | Black |
| Amplifier Channels | 5 |
| Impedance | 2 - 8 Ohms |
| RMS Power Handling (Watts) | 500 |
| Water Resistant | No |
| Digital Input | No |
| Shallow Mount | No |
| Speaker Level Input | Yes |
| Number Of Outputs | 5 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 3 |
| Height (cm.) | 5.56 |
| Depth (cm.) | 18.75 |
| Product Weight (kg) | 2.04 |
| Product Weight (lbs.) | 4.5 |
| Width (cm) | 22.86 |
