Product Dimensions 0.94"h x 1.25"w x 1"d

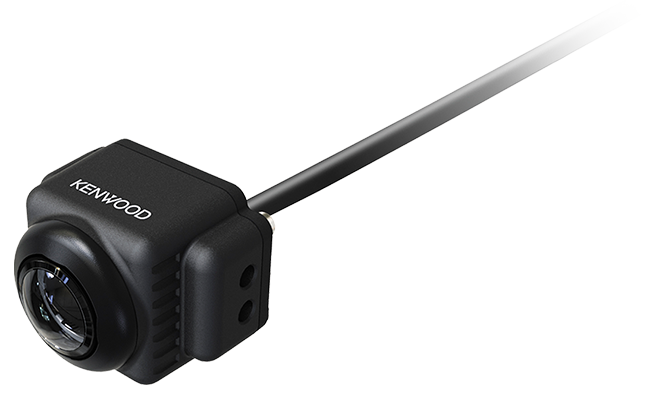

Kenwood CMOS-740HD Camera with multi-view and HD rear camera for clarity when backing up.Read More
Multi-View
HD Rear
12V & 24V Compatible
Displaying the image in true 1280 x 720 (720P) High Definition on compatible with DNX997XR, DDX9907XR, and DMX957XR receivers.
HDR helps to reduce “blown out highlights” and “crushed blacks” and ensure clear images in challenging environments, including backlit scenes in daylight, streetlight scenes at night and places where light-dark contrast is particularly severe.
Cameras work with both 12V and 24V applications.
General Specs | |
| Color | Black |
| Color Finish Name | Black |
| Width (in.) | 1.25 |
| Height (in.) | 0.94 |
| Depth (in.) | 1 |
| Width (cm) | 3.18 |
| Height (cm.) | 2.39 |
| Depth (cm.) | 2.54 |
| Hd Video | Yes |
| Product Weight (kg) | 0.03 |
| Product Weight (lbs.) | .07 |
General | |
| Photographed Image | HD (1280 x 720) |
| Lens | Wide angle, focal length: 1.86mm F:2.0 |
| Frame Rate | 30fps |
| Angles of View | Horizontal 180°/ Vertical 103° |
| Operating Voltage | 12V/24V |
| Operating Tempreture | -22℉ to +185℉ / -30℃ to +85℃ |
| IPX | IP67 |
| Output | HD-TVI |
| Weight | 0.073lbs / 33.2g (without cable) |
Cable Length | |
| Camera Unit side | 9.84ft / 3m |
| DC Box Unit side | 19.69ft / 6m |
| Other | 1.64ft / 0.5m |
