Product Dimensions 9.63"h x 6"w x 6.75"d

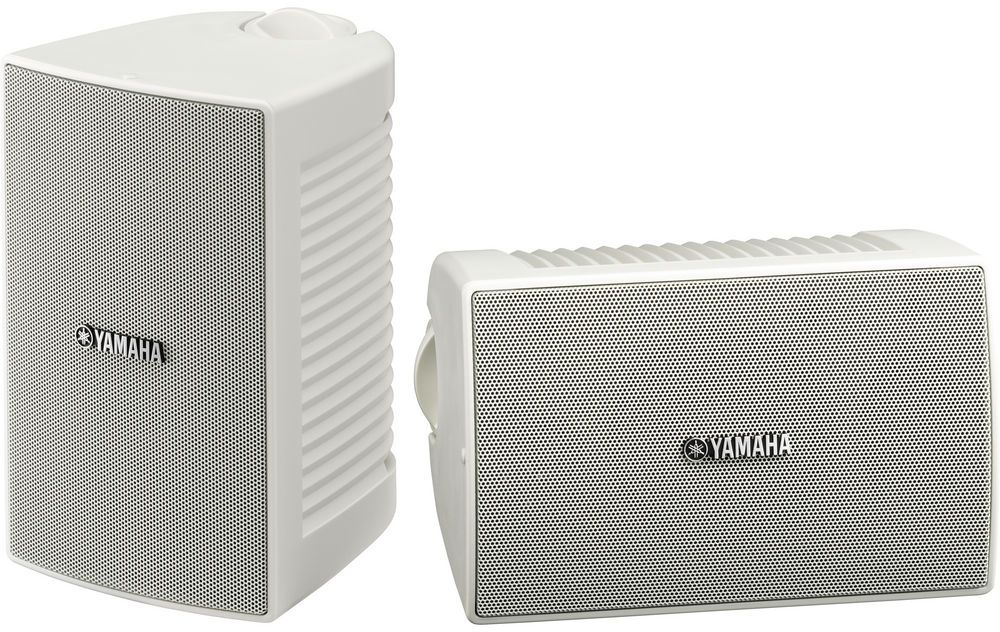

Yamaha® High Performance Outdoor Speakers with outstanding sound quality and weatherproof cabinets that are drip/water/UV resistant. High performance outdoor speakers with outstanding sound quality and weatherproofing. The simple design allows them to be installed in many types of locations.Read More
Yamaha’s advanced speaker design combines superior sound quality with excellent weatherproofing
Powerful woofer delivers accurate mid/low frequency response
Balanced dome tweeter ensures clear high frequency response
Excellent audio performance, weatherproof cabinets that are drip, water and UV resistant
These speakers have a clean, simple design that will look attractive in any location on the exterior of your house, and even present a tasteful appearance when used in an interior installation.
The NS-AW194 looks great and fits in most spaces, but if you need bigger sound then pick up the NS-AW294. Each model is available in white or black, you can choose the model that best matches your desired exterior or interior installation location.
The supplied brackets allow you to adjust the speakers to match the installation location. They can be installed vertically or horizontally, and can be moved through a range of 81° to the right or left and up or down directions.
Simple design looks natural on a home exterior, on a patio or inside a room
Two sizes and two colour variations allows you to choose the best match in various installations
Flexible installation options with supplied mounting brackets
Powder-coated grilles provide outstanding weatherproof properties
Push type speaker terminals for easy installation
General Specs | |
| Product Weight (lbs.) | 2.9 |
| Color Finish Name | White |
| Mounting Hardware Included | Yes |
| RMS Power Handling (Watts) | 80 |
| Height (cm.) | 24.46 |
| Depth (cm.) | 17.15 |
| Width (cm) | 15.24 |
| Product Weight (kg) | 1.32 |
| Color | White |
| Impedance | 8 ohms |
| Number of Speakers | 2 |
| Depth (in.) | 6.75 |
| Height (in.) | 9.63 |
| Width (in.) | 6 |
Connections | |
| Connector Type: | Push Type Terminals |
Construction | |
| Tweeter Composition: | Fluid-Cooled, Coated Balanced Dome |
| Woofer Composition: | Waterproof Cone |
Features | |
| Indoor/Outdoor: | Outdoor |
Other | |
| Sold As: | Pair |
Styling | |
| colour: | White |
Specifications | |
| Type | 2-way bass-reflex |
| Woofers | 4" waterproof cone |
| Tweeter | 1" fluid-cooled, coated balanced dome |
| Frequency Response | 100 Hz–20 kHz |
| Nominal Input Power | 30 W |
| Maximum Input Power | 80 W |
| Sensitivity | 85 dB/2.83 V/1 m |
| Impedance | 8 ohms |
| Dimensions (W x H x D) | 6” x 9-5/8” x 6-3/4” |
| Weight | 2.9 lbs.; 1.3 kg/unit |
| I/O connectors | Push Terminal (Applicable Cable *Max, Twisted wire : 8mm²/ AWG 8) |
| Flying and mounting hardware | U-bracket (Movable angle: 81°) *degree pitch:13.5° |
| Waterproof | IPx3 |
| Others | Packaged in pair |
